Wavelength Blocking Filter

製品状態－生産中

製品特徴

-This pluggable adapter will completely block specific wavelength

Specification - 規格及び仕様

Parameter	Unit	XGS-PON Blocking	GPON Blocking	NG-PON2 Blocking	OTDR Blocking
Operating W/L Range	nm	1260 ~ 1660
Pass W/L	nm	1260~1560	1290~1330	1260~1565	1260~1610
Blocking W/L	nm	1575~1581	1480~1500	1575~1660	1625~1660
Max Insertion Loss	dB	1.5
Operating Temp.	℃	-10 ~ +60
Storage Temp.	℃	-40 ~ +85
Isolation	dB	Min 40
Connector Type	-	SC Male/Female or LC Male/Female

Application - 用途

FEATURES

- Low Cost & Low Insertion Loss

- Easy Operation & Installation

- High Reliability & Performance

- Wide-Bandwidth

APPLICATIONS

- FTTH Installation

- G-PON / XGS-PON / RF-Video

- OTDR

- Signal Blocking

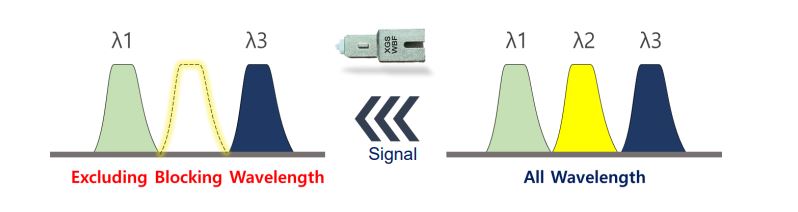

Blocking Wavelength Selection

- Provides interference free for existing G-PON 'ONU' by completely blocking XGS-PON wavelength inflow.

- It blocks light wavelengths that interfere with the OTDR.
